Gallows Bracket 600mm x 600mm - No Finish
Quantity Discount

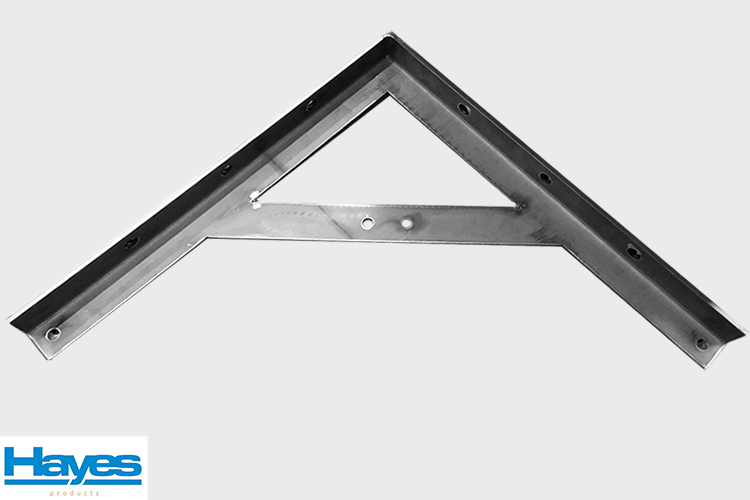

GALLOWS BRACKET 600mm x 600mm - NO FINISH
Hayes Products
GB600/NFIN
    Delivery time:5-7 Days
Add to cart
  • Description
  • Specifications

Discount Quantity Price - From £42.41

High Quality Gallows Brackets designed and manufactured by Hayes Products.

Manufactured in the UK under ISO 9001. Product manufactured to CE1090 exc2 Standards.

Available in Self Colour, Primer, Galvanised or Bespoke Powder Coating (minimum quantity applies).

Delivery times may vary according to quantity and finish.
Construction 5mm Plate Construction, Plasma Cut, folded, 50mm Corner Weld
Size 600 x 600mm
Fixing 10 x 15mm holes for M12 bolts - resin or through bolt fixing
Load Testing Load Testing - Bolted to steel column - Material Fixing Back to Dependant Load Test 1 - GB600 - Single Down - SWL250kg (552kg fail) Load Test 2 - GB600 - Single Up - SWL450kg (905kg fail) Load Test 3 - GB600 - Double Down - SWL450kg (971kg fail) Load Test 4 - GB600 = Double Up - SWL750kg - tbc
Increase Support Capacity Brackets can be bolted back-to-back for increased support capacity
Bracing Between Brackets M12 all thread bracing between brackets - 1000mm x 3000mm dependent on layout
Quality Assurance Manufactured in the UK under ISO9001
