Post Shoe Narrow Ext 112 - GALVANISED
Hayes Products
PS1025N/200200GALV
    Delivery time:5-7 Days
Add to cart
  • Description
  • Specifications

Discount Quantity Price - From £30.59

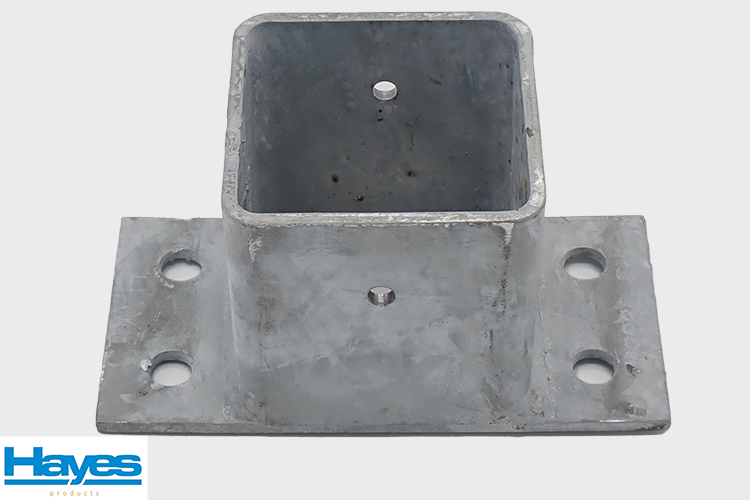

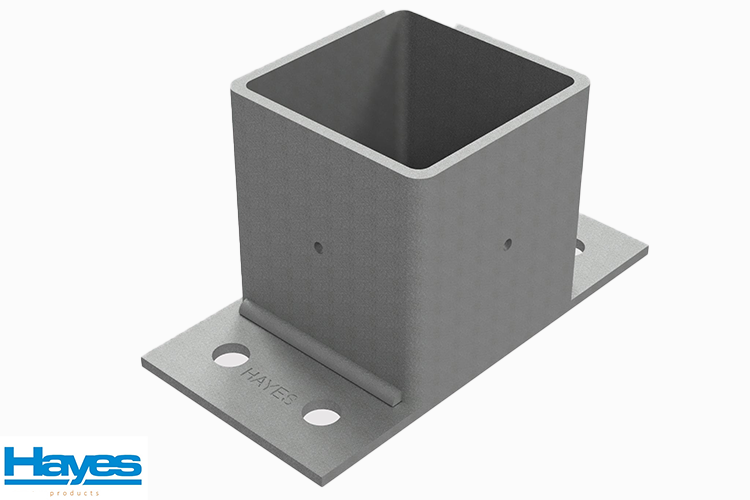

Heavy Duty Post Shoe Narrow - Designed for timber fence posts to be installed on a hard surface including wood or concrete base.

External Dimensions: 112mm x 112mm
Internal Dimensions: 102mm x 102mm



Manufactured in the UK under ISO 9001. Product manufactured to CE1090 exc2 Standards.

Available in Self Colour, Primer, Galvanised or Bespoke Powder Coating (minimum quantity applies).

Delivery times may vary according to quantity and finish.
Base Plate Size 200 x 200
Base Plate Thickness 5mm Grade S275JRH
Post Shoe Size External 112 x 112
Post Shoe Size Internal 102 x 102
Post Shoe Height 100 mm - SHS (Square Hollow Section) 5mm Mild Steel S235JRH
Post Shoe Fixing - SHS 5mm dia Ø holes on 3 faces for 10 gauge screws

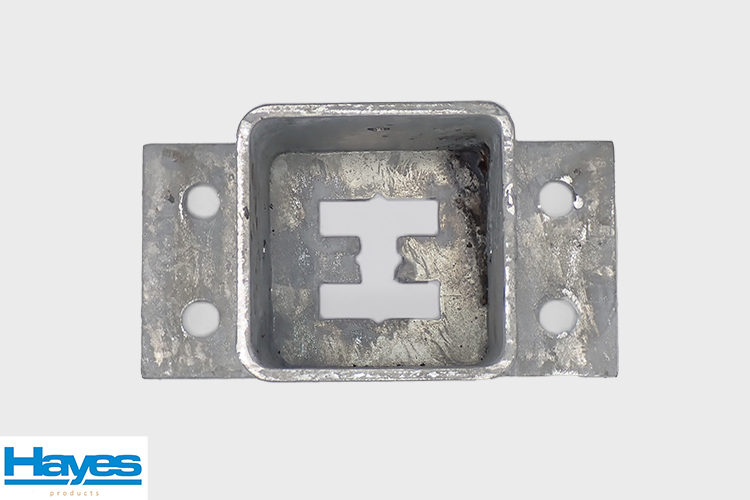

Post Shoe Fixing Base 4 x 15mm holes for M12 resin or through bolt fixing
15mm hole allow an SDS plus to drill through after
Base Alignment Marking to base plate for easy alignment
MAG Welded 5mm Fillet Welds
Manufactured to CE1090 exc2 Standards
